12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

Product Categories

COMI LIGHTING LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

Name: 12 24VDC 8A CH 3CH LED RGB DMX RDM Controller with RF Remote Controller
Brand: LT-Series LED RGB / DMX / RDM Controller
Price: 1 USD

China 12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller wholesale

Brand Name : LT-Series LED RGB / DMX / RDM Controller

Model Number : CL-LT-300-A3

Certification : CE, ROHS, FCC, ISO9001:2008

Place of Origin : Guangdong China

MOQ : 10pcs

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100000pcs per month

Delivery Time : 3~12 Days

Packaging Details : L260×W132×H46mm, 0.85kg

Product Type : RGB / DMX / RDM Controller

Input Voltage : DC12V~DC24V

Max load current : 8A/CH x3 Max 24A

Max load power : 288W/576W(12V/24V)

Function mode : 39 changing modes

Output gray scale : DMX mode: 256 levels/CH, RGB mode:1024 levels/CH

DMX512 standard : DM×512

DMX512 Socket : XLR-3, RJ45, Green terminal

Remote control distance : 100Meters

Warranty : 5 Years

Contact Now

CL-LT-300-A3 12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller CE, ROHS, FCC, ISO9001:2008

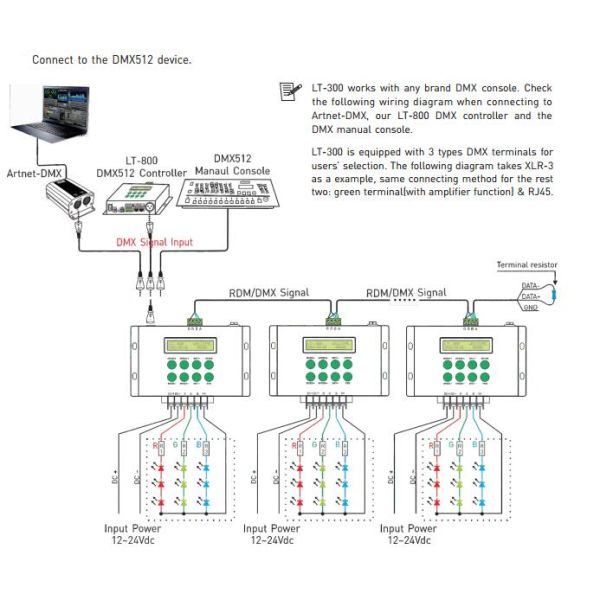

CL-LT-300 RGB/DMX Controller with LCD screen, which is dedicated to control entire synchronous color changes of Led lights with 4-pin 3-loop cables (common anode), 36 optional modes, built-in a standard DMX512 decoder to receive universal DMX512 signal. It can work standalone or work with DMX512 devices to receive standard DMX512 signal. Also.

it can add power repeater to expand power unlimitedly if one controller is not enough to provide the power output.

Performance Features

Built-in a LCD screen, easy to set up parameters;
Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or holiday.
28 lighting modes, such as, single color brightness, color change, color smooth, and color strobe, etc.
Multilevel changing speed, brightness and RGB grey scale adjustment for your choices, 256 brightness levels per RGB(16.77 million static colors).
Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
Support different input ports like standard XLR-3, RJ45 and Green terminals, etc.

Product parameter

Input voltage	DC12V~DC24V
Max load current	8A/CH x3 Max 24A
Max load power	288W/576W(12V/24V)
Function mode	39 changing modes
Output gray scale	DMX mode: 256 levels/CH, RGB mode:1024 levels/CH
DMX512 standard	DM×512
DMX512 Socket	XLR-3, RJ45, Green terminal
Remote control distance	100m
working temperature	-30℃~65℃
Dimension	L163×W108×H40mm
Package Size	L260×W132×H46mm
Weight (G.W)	815g

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller

Product Tags:

led strip controller

led dmx decoder

12- 24VDC 8A / CH 3CH LED RGB / DMX / RDM Controller with RF Remote Controller Images
